Product features

1.32-bit high performance CPU

Compiled execution mode; scan cycle is 10 times faster than that of the analytic model.

2. Fast instruction execution

The execution time of single-step run instruction is up to 0.05uS.

3.High-performance high-speed pulse input/output
Support 2-way or 4-way high-speed pulse output, up to 200KHz Support two-way single-phase or one-way AB phase high-speed pulse counting, up to 200KHz.

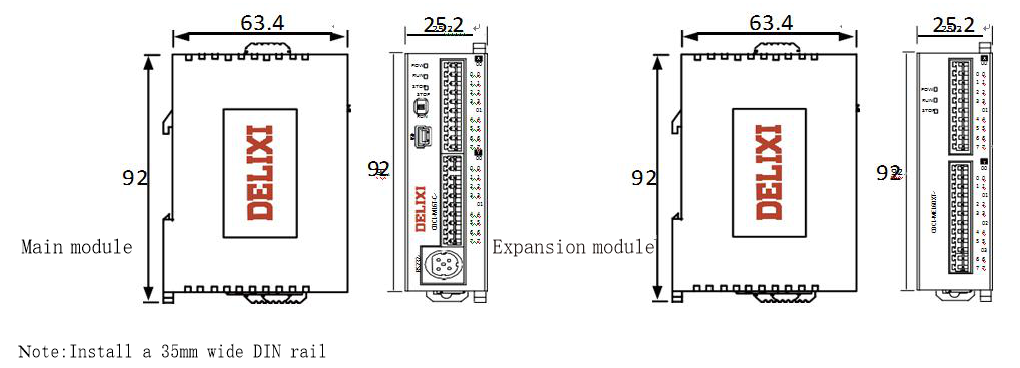

4.Small installation size

Smaller size and convenient installation, saving the limited installation space for users.

5. Large storage capacity

With more than 20,000 lines of user program storage area, larger program capacity 2KByte power-off storage area, for safer data storage.

6. Multi-layer encryption protection

Including the upload password, download password, monitoring password, sub-program password and other protection, protect the legitimate rights and interests of users.

7.Easy to download and debug

Support USB power supply download program and debugging, highly reliable USB upload, download and monitoring.

8.Easy to install software and easy to program

Easy to install the programming software with rich and convenient programming interface tools.

9.External clock chip

An external real-time clock chip is used to make the clock more accurate.

10.Interrupt function

Support the interrupt functions, including external interrupts and timer interrupts, not affected by the main program scan cycle to make the given signal response more timely.

。Electrostatic grade: 3, ±6000V

。Support up to 3 expansion modules and one expansion point accessory; support USB power supply programming, and support analogue simulation run.

。The programming software is simple and easy to understand, supporting more than 160 commands.

。With European and Japanese programming styles, support ladder diagram programming and command input programming

。With clear program structure, there are main program, subprogram, and interrupt program, and the program is divided into multiple grids.

。The application command in the ladder diagram is in the form of a command block, which appears in the tree menu for selection by user.

。Support for initializing register values and status.

。Support the component use table view function, and the allocation management of the registers is more convenient.

。Support user variable table, with centralized customization of variables, for more efficient programming.

。One RS232.

。Support RS232 and USB for communication, monitoring, upload and download with PC.

I.MINI type PLC host

II.MINI type PLC expansion module
