♦ Communication mode

The built-in COM integrates the RS232/422/485 communication mode. It has 2 COM ports for quick serial communication.

♦ Software downloading

The product provides download ports at USB master and USB slave. The USB slave port supports transmission at 10M/S. The PnP USB master port supports a U disk, a printer, a mouse, or any other USB device.

♦ Network card

A10M/100M adaptive network card supports a network formed by HMI and another device that makes data exchange fast,realizing Ethernet communication in industry.

♦ Data storage

High-capacity FLASH supports large data storage and U disk storage. Data will not get lost even in sudden outage.

♦ Security

Anew password mechanism is safer and more reliable.

♦ Gallery

Provide a big gallery containing numerous vector diagrams used in various industries; support user definition (drawing) of vector diagrams; support image formats such as BMPand JPG; provide a commonly-used standard outline border of vector diagram.

♦ Text font

Support 5 switchable languages, TRUE TYPE (TTF), complex font editing function, and Unicode encoding. Execute the international standard.

♦ Printer; serial network

Support USB printers for image/data printing; achieve maximum connections (32 PLCs or smart devices) through RS485 communication.editing function, and Unicode encoding. Execute the international standard.

♦ Pass-through communication

Through HMI, PC communicates directly with PLC or the connecting device; 2 HMIs communicate with the samePLC simultaneously.

♦ New set-up function

Aslide analog switch supports slide entry of values; DropDownList is a list of multiple items to display; multiple retnd chart display components.

♦ Online simulation

Connect the computer directly to PLC to obtain data and simulate configuration works.

♦ Ethernet communication

The Ethernet network brings about communication between different HMIs or between an HMI and a control device.

Product Model		CDH-B050S; CDH-B050E		CDH-B070S; CDH-B070E; CDH-B070SM; CDH-B070EM				CDH-B102S; CDH-B102E
Display	Display panel	5"(L:W=16:9)		7"(L:W=16:9)				10.2"(L:W=16:9)
	Resolution (pixels)	480x272 pixels		800x480 pixels				800x480 pixels
	Touch panel	4-line high precision touchpad		4-line high precision touchpad				4-line high precision touchpad
	Display color	260000		260000				260,000
	Backlight unit	LED		LED				LED
	Contrast	400：1	450：1	400：1				450：1
	Luminosity (cd/m)2	400cd/m2		450cd/m2				500cd/m2
Product feature/certification	SD card	N		Y	N	Y	N	Y
	Memory	128M FLASH+64M DDR		128M/FLASH+64M DDR				128M/FLASH+64M DDR
	CPU	32-bit 400MHz RISC		32-bit 400MHz RISC				32-bit 400MHz RISC
	FCC compatibility	Conform to FCC, Class A		Conform to FCC, Class A				Conform to FCC, Class A
	Dielectric strength test	1000V AC, 1 min.		1000V AC, 1 min.				1000V AC, 1 min.
	CE certification	Conform to standards EN55022 and EN55024		Conform to standards EN55022 and EN55024				Conform to standards EN55022 and EN55024
	Front class (front panel)	IP65		IP65				IP65
	Housing material	Engineering plastics ABS+PC		Engineering plastics ABS+PC				Engineering plastics ABS+PC
Power	Configuration software	CDHB-DPSoft		CDHB-DPSoft				CDHB-DPSoft
	Power supply/consumption	DC24V(+/-15%)/3W		DC24V(+/-15%)/6W				DC24V(+/-15%)/8W
Interface	Serial port	COM:RS232/422/485		COM1:RS232/422/485; COM2:RS232/422/485				COM1:RS232/422/485; COM2:RS232/422/485
	USB download port	Y	Y	Y	Y	Y	Y	Y
	USB port	Y	Y	Y	Y	Y	Y	Y
	Ethernet port	Y	N	Y	N	Y	Y	Y
Working environment	Ambient humidity	-10 ~ 65°C/10 ~ 90%RH		-10 ~ 65°C/10 ~ 90%RH				-10 ~ 65°C/10 ~ 90%RH
	Seismic resistance	10-25Hz(In directions XYZ: 2G / 30 min.)		10-25Hz(In directions XYZ: 2G / 30 min.)				10-25Hz(In directions XYZ: 2G / 30 min.)

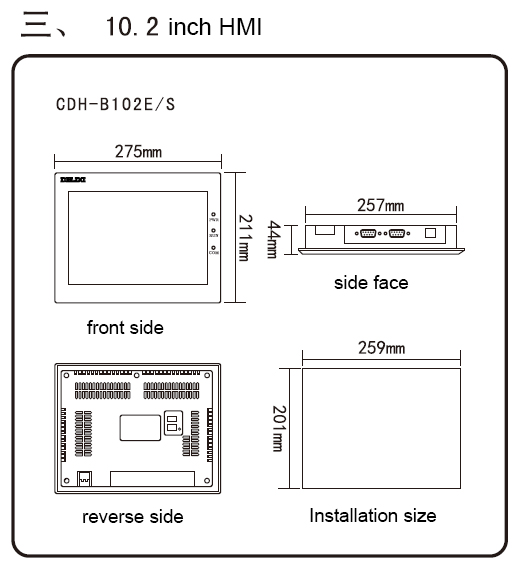

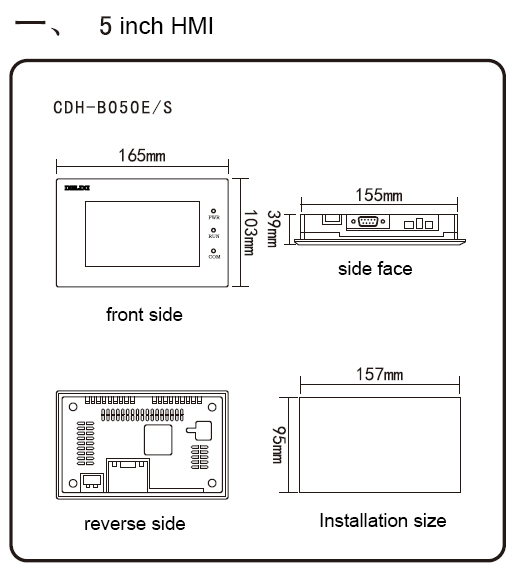

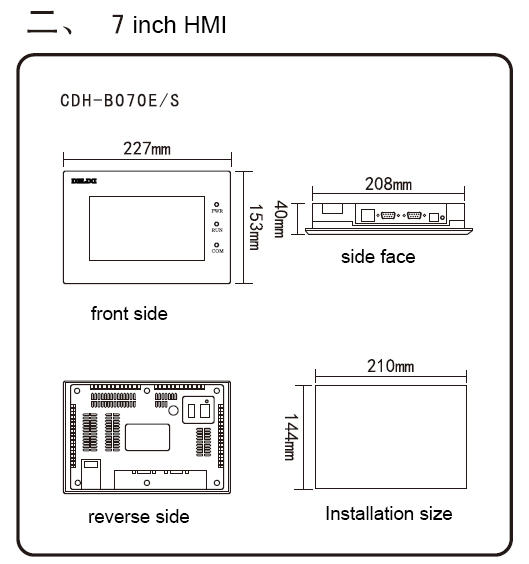

Structure	Dimensions (WHD)	16510339(mm)		22715340(mm)				27521044(mm)
	Hole size (W*H)	157* 95(mm)		210*144(mm)				259*201(mm)
	Net weight	0.8kg		1.5kg				2kg
